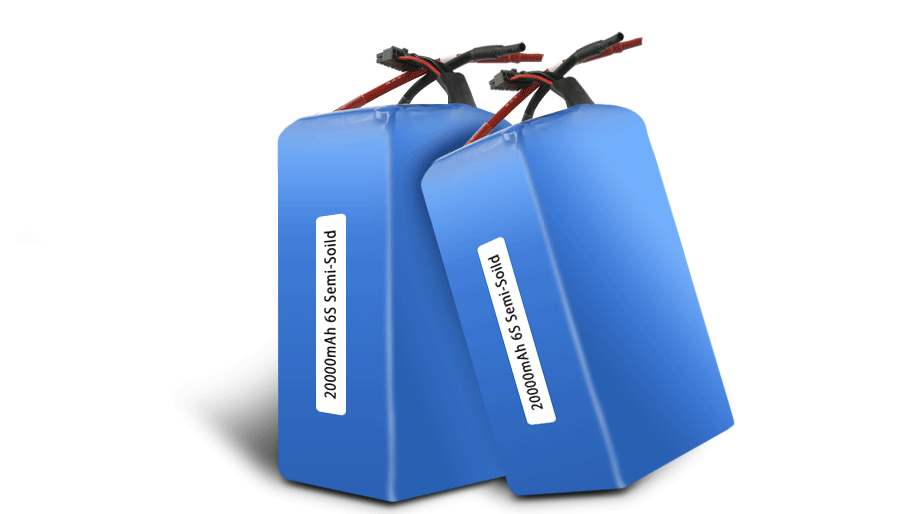

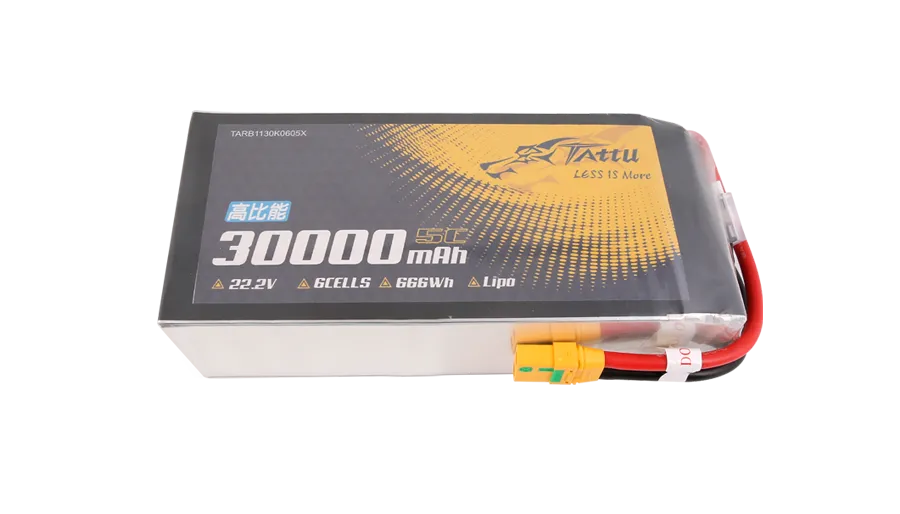

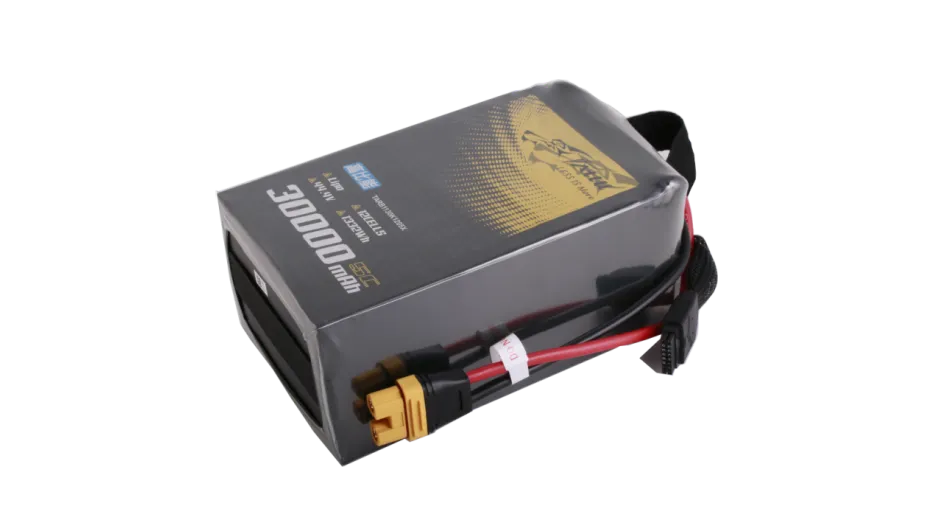

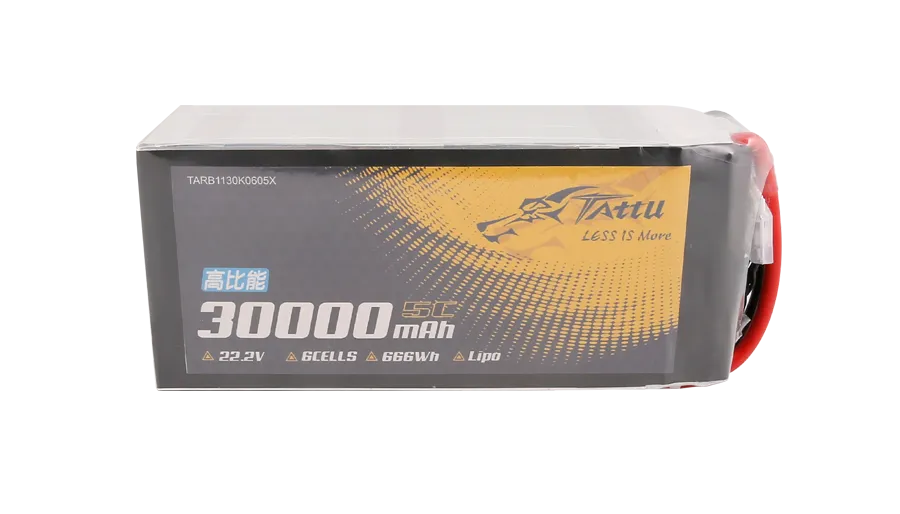

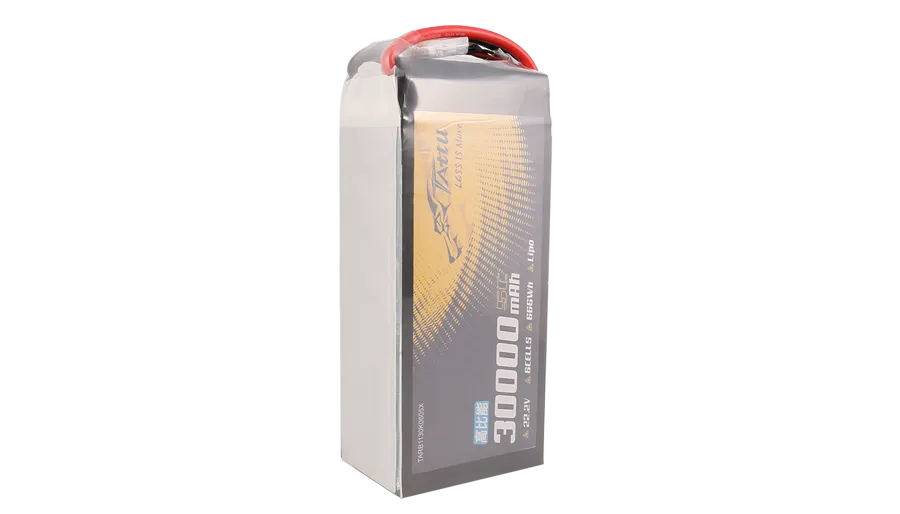

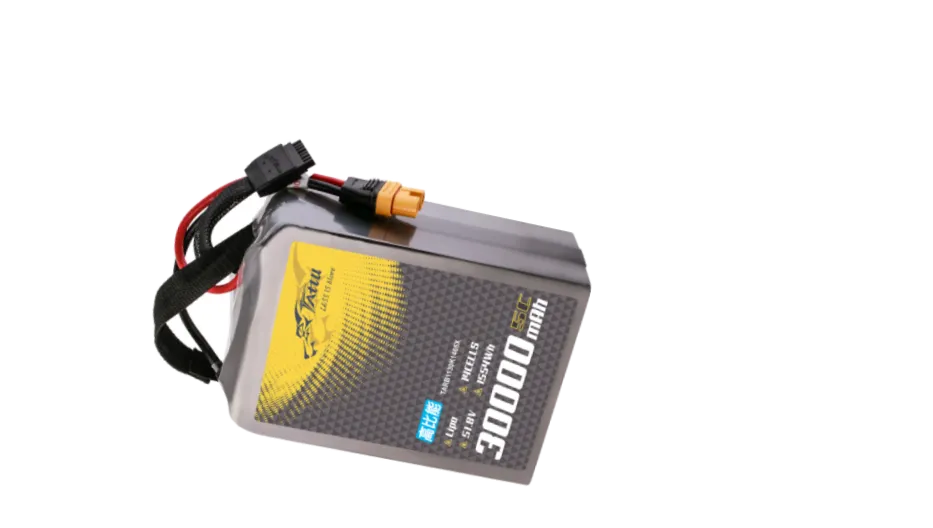

300 Wh/kg系列半固态-高比能-高能量密度电池-格瑞普电池

产品详情

300Wh/kg半固态-高比能-高能量密度系列电池组参数

电池型号	容量（Ah）	能量（Wh）	串数（S）	额定电压(V)	落地电压(V)	尺寸(T×W×L ±5mm)	重量(±200g)	能量密度(Wh/kg)	持续放电电流 (3C)	峰值电流(≤15S)
TARBG3017K04S10X	17Ah	251.6Wh	4S	14.8V	12.2V	34.3×71.5×191.5	932g	269.96Wh/kg	51A	170A
TARBG3022K04S10X	22Ah	325.6Wh	4S	14.8V	12.2V	39.9×76.5×192	1172g	277.82Wh/kg	66A	220A
TARBG3025K04S10X	25Ah	370Wh	4S	14.8V	12.2V	35.1×91.5×207	1324g	279.46Wh/kg	75A	250A
TARBG3030K04S10X	30Ah	444Wh	4S	14.8V	12.2V	41.9×91.5×207	1564g	283.89Wh/kg	90A	300A
TARBG3084K04S10X	84Ah	1243.2Wh	4S	14.8V	12.2V	50.3×151.5×287	4260g	291.83Wh/kg	252A	840A
TARBG3017K06S10X	17Ah	377.4Wh	6S	22.2V	18.3V	50.7×71.5×191.5	1376g	274.27Wh/kg	51A	170A
TARBG3022K06S10X	22Ah	488.4Wh	6S	22.2V	18.3V	59.1×76.5×192	1736g	281.34Wh/kg	66A	220A
TARBG3025K06S10X	25Ah	555Wh	6S	22.2V	18.3V	51.9×91.5×207	1964g	282.59Wh/kg	75A	250A

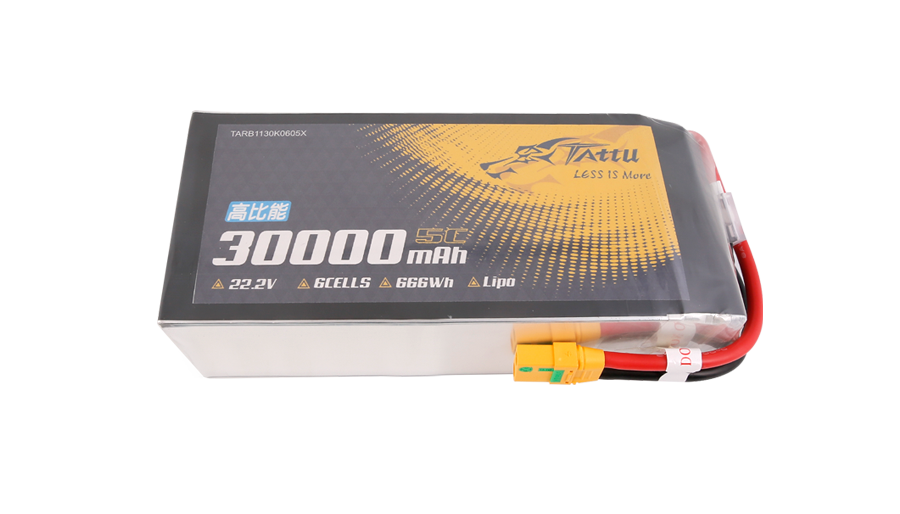

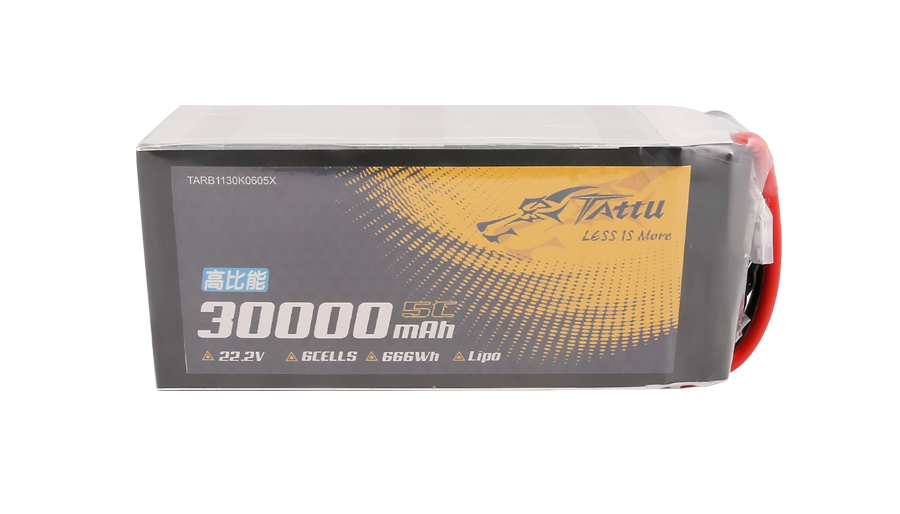

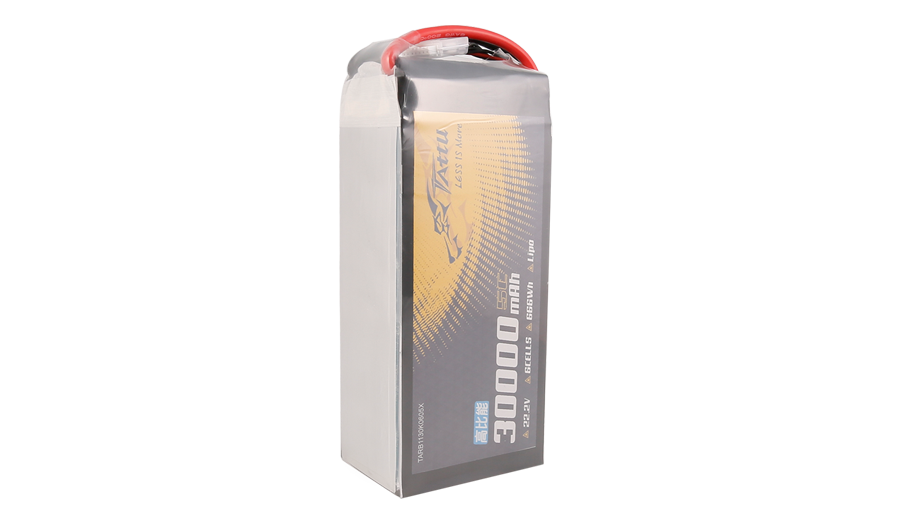

TARBG3030K06S10X	30Ah	666Wh	6S	22.2V	18.3V	62.1×91.5×207	2324g	286.57Wh/kg	90A	300A
TARBG3084K06S10X	84Ah	1864.8Wh	6S	22.2V	18.3V	74.7×151.5×287	6368g	292.84Wh/kg	252A	840A
TARBG3017K08S10X	17Ah	503.2Wh	8S	29.6V	24.4V	67.1×71.5×191.5	1770g	284.26Wh/kg	51A	170A
TARBG3022K08S10X	22Ah	651.2Wh	8S	29.6V	24.4V	78.3×76.5×192	2281g	285.51Wh/kg	66A	220A
TARBG3025K08S10X	25Ah	740Wh	8S	29.6V	24.4V	68.7×91.5×207	2604g	284.15Wh/kg	75A	250A
TARBG3030K08S10X	30Ah	888Wh	8S	29.6V	24.4V	82.3×91.5×207	3115g	285.08Wh/kg	90A	300A
TARBG3084K08S10X	84Ah	2486.4Wh	8S	29.6V	24.4V	99.1×151.5×287	8851g	280.92Wh/kg	252A	840A
TARBG3017K12S10X	17Ah	754.8Wh	12S	44.4V	36.6V	101.9×71.5×196.5	2655g	284.26Wh/kg	51A	170A
TARBG3022K12S10X	22Ah	976.8Wh	12S	44.4V	36.6V	118.7×76.5×197	3421g	285.51Wh/kg	66A	220A
TARBG3025K12S10X	25AH	1110Wh	12S	44.4V	36.6V	104.3×91.5×212	3906g	284.15Wh/kg	75A	250A
TARBG3030K12S10X	30Ah	1332Wh	12S	44.4V	36.6V	124.7×91.5×212	4672g	285.08Wh/kg	90A	300A
TARBG3084K12S10X	84Ah	3729.6Wh	12S	44.4V	36.6V	149.9×151.5×292	13277g	280.92Wh/kg	252A	840A
TARBG3017K14S10X	17Ah	880.6Wh	14S	51.8V	42.7V	118.3×71.5×196.5	3098g	284.26Wh/kg	51A	170A
TARBG3022K14S10X	22Ah	1139.6Wh	14S	51.8V	42.7V	137.9×76.5×197	3991g	285.51Wh/kg	66A	220A
TARBG3025K14S10X	25Ah	1295Wh	14S	51.8V	42.7V	121.1×91.5×212	4557g	284.15Wh/kg	75A	250A
TARBG3030K14S10X	30Ah	1554Wh	14S	51.8V	42.7V	144.9×91.5×212	5451g	285.08Wh/kg	90A	300A
TARBG3084K14S10X	84Ah	4351.2Wh	14S	51.8V	42.7V	174.3×151.5×292	15489g	280.92Wh/kg	252A	840A
TARBG3017K18S10X	17Ah	1132.2Wh	18S	66.6V	54.9V	151.1×71.5×196.5	3983g	284.26Wh/kg	51A	170A
TARBG3022K18S10X	22Ah	1465.2Wh	18S	66.6V	54.9V	176.3×76.5×197	5132g	285.51Wh/kg	66A	220A
TARBG3025K18S10X	25Ah	1665Wh	18S	66.6V	54.9V	154.7×91.5×212	5860g	284.15Wh/kg	75A	250A
TARBG3030K18S10X	30Ah	1998Wh	18S	66.6V	54.9V	185.3×91.5×212	7009g	285.08Wh/kg	90A	300A
TARBG3084K18S10X	84Ah	5594.4Wh	18S	66.6V	54.9V	223.1×151.5×292	19915g	280.92Wh/kg	252A	840A
TARBG3017K24S10X	17Ah	1509.6Wh	24S	88.8V	73.2V	200.3×71.5×196.5	5311g	284.26Wh/kg	51A	170A
TARBG3022K24S10X	22Ah	1953.6Wh	24S	88.8V	73.2V	233.9×76.5×197	6843g	285.51Wh/kg	66A	220A
TARBG3025K24S10X	25Ah	2220Wh	24S	88.8V	73.2V	205.1×91.5×212	7813g	284.15Wh/kg	75A	250A
TARBG3030K24S10X	30Ah	2664Wh	24S	88.8V	73.2V	245.9×91.5×212	9345g	285.00Wh/kg	90A	300A
TARBG3084K24S10X	84Ah	7459.2Wh	24S	88.8V	73.2V	296.3×151.5×292	26553g	280.92Wh/kg	252A	840A
